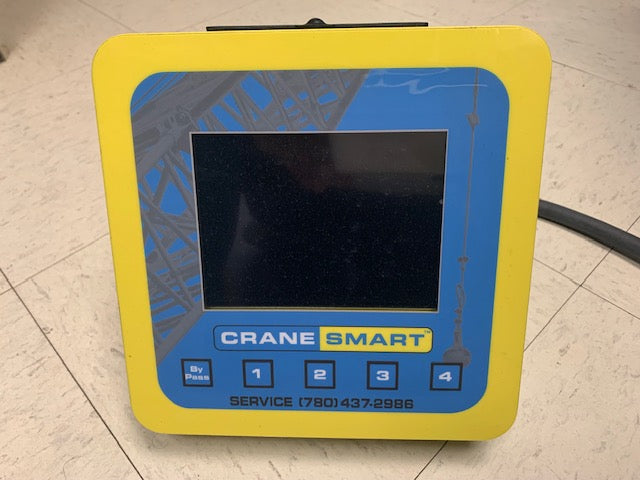

LMI 4 CRANESMART DISPLAY PANEL

The main display, wireless touchscreen receiver and control Panel for the Cranesmart System. Sensor transmissions are received through this panel and are clearly displayed for the operator. The Display Panel is also where all software logic and menu interfaces are loaded and is typically mounted in the operator's reach and field of vision.

• Operating time 100% (continuous duty)
• Voltage type 12-24 VDC, 7.5A
• normal operating range (can accept 11-32 VDC)
• Operating temperature -40°C to +60°C
• Operating Frequency Range----900-928 MHz in North America 868-870 MHz in Europe
• Material----Body material - LNP Faradex Compound DS00361P
• Seals - ROHS compliant silicon rubber, 60 durometer shore-A, compound # SIM40160
• Connection--- Woodhead, bulgin or amphenol
• Mounting options--- Bolt on bracket
• Hazardous locations
• Class I Div. 2 Gr ABCD T5 IECEX QPS 18.0001X Ex nA IIC T5 G -40°C < Tamb<+60° Certified to: IEC 60079-0, IEC 60079-15 CSA C22.2 No. 213/UL 121201
• Environmental Ingress Protection IP67
