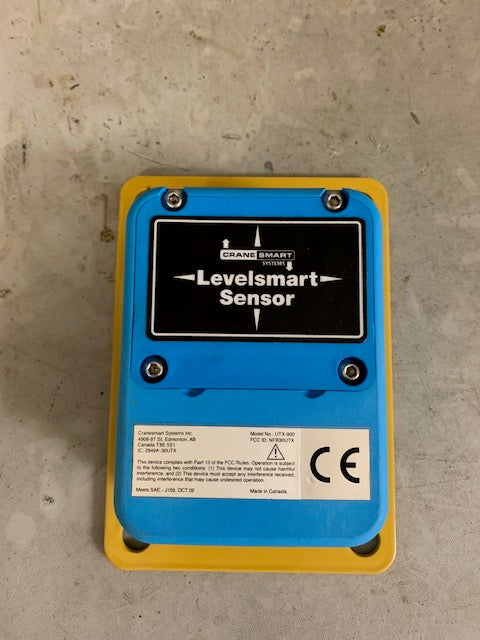

LEVEL INDICATOR

Overview:

Provide accurate indication if the crane is level (within 0.1° accuracy), sending a signal for alarm if necessary. The sensor is most useful in situations where there may be ground thaw, sinking mud or extreme wind.

• Operating time-- 100% (continuous duty)
• Voltage type-- Powered by a 3.6 volt D cell lithium battery
• Operating temperature -40°C to +60°C
• Operating Frequency-- Range 900-928 MHz in North America 868-870 MHz in Europe
• Material-- Body material – Ultramid 8333G Hi-Polyamide 6 Seals – ROHS compliant silicon rubber, 60 durometer shore-A, compound # SIM40160
• Connection-- No connection, component provides a wireless signal
• Mounting options-- Various brackets available to meet application requirements
• Hazardous locations-- Exia IIB T4 Intrinsically Safe per IEC CAN/CSA E60079-11:02
• Environmental Ingress Protection-- IP67
• Application-- Cranes of all types
