Cranesmart Power Cable

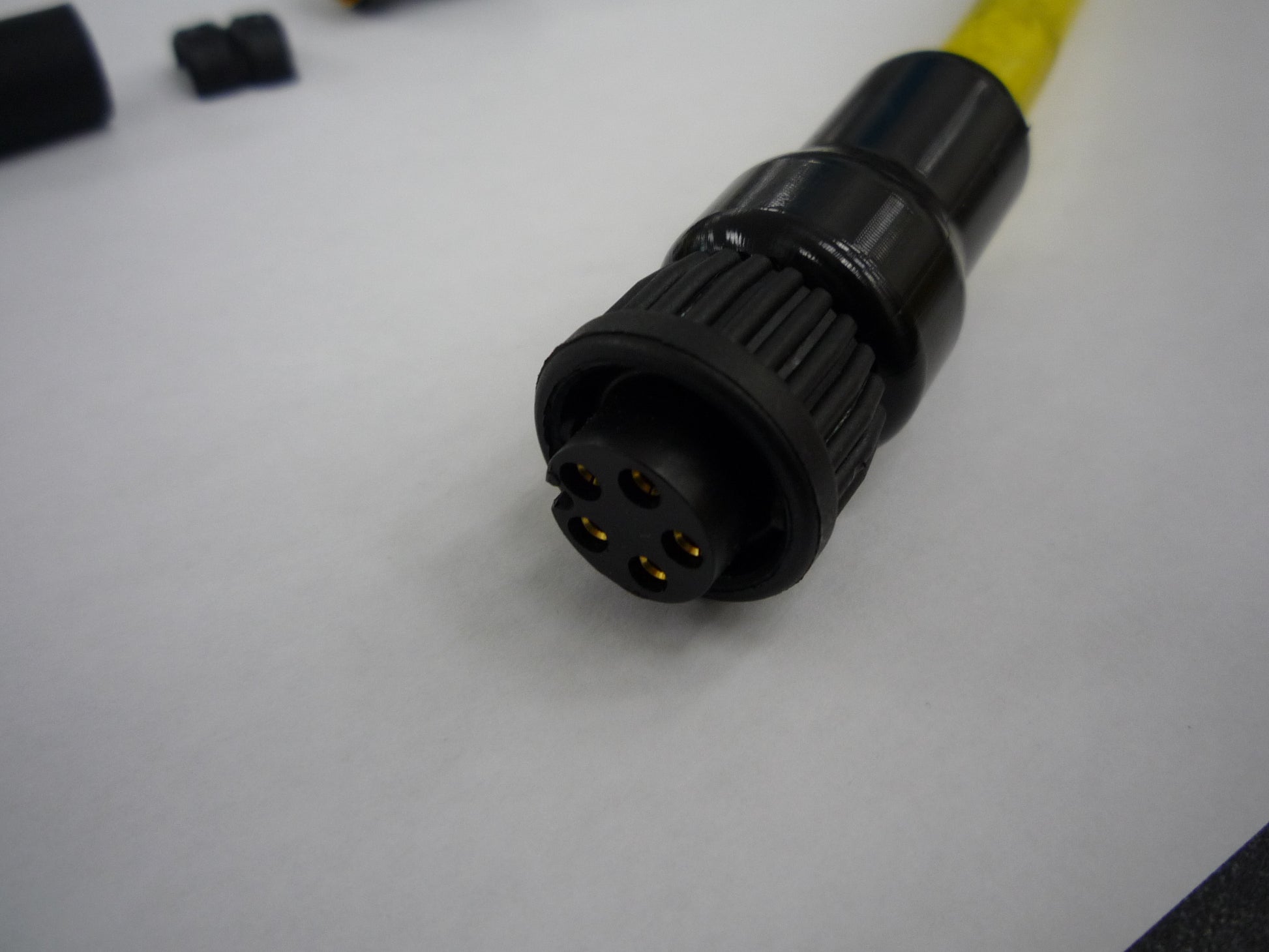

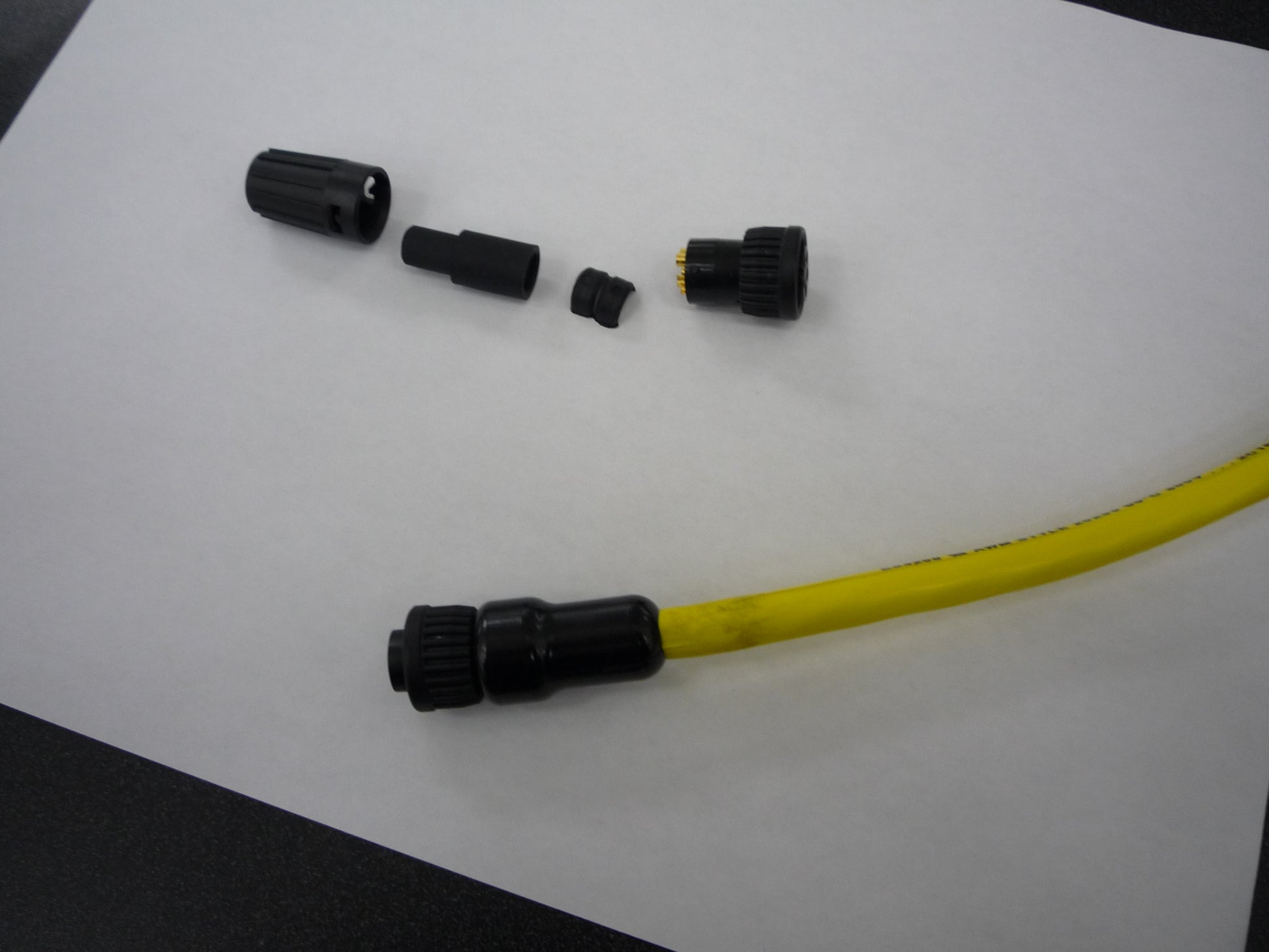

Power to the display panel is supplied through the three-conductor cable labelled „Power‟, included in the kit, which plugs into the back of the Cranesmart Display panel.

1. Connect the red wire to a positive 12 or 24 VDC (28VDC max) terminal.

2. Connect the black wire to a solid ground on the crane.

3. OPTIONAL: Connect the white wire to an optional „Shut off‟ or to sound external horns (maximum output is 7.5 amps)
