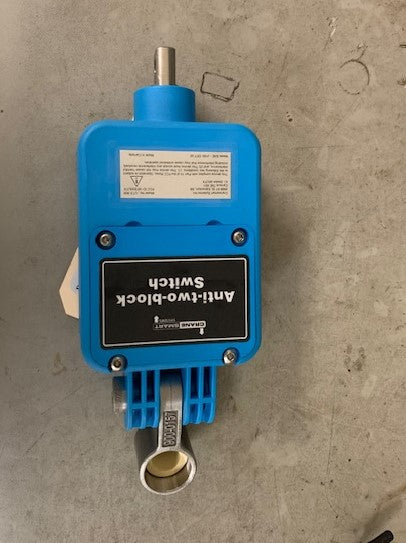

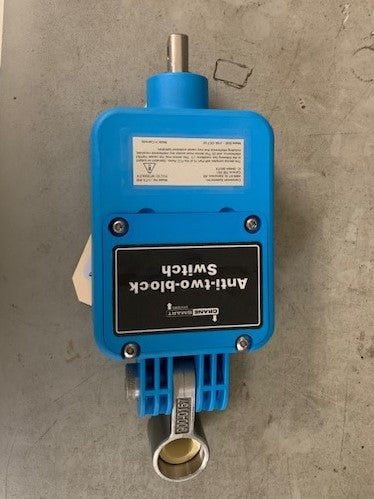

CRANESMART ANTI TWO BLOCK SWITCH (STANDARD)

Cranesmart A2B sensor used to monitor a counterweight attached to the slow speed line of a travelling block. When the block makes contact with the counterweight, Cranesmart Anti two Block sensor sends an alarm signal to a central display panel.

• Operating time 100% (continuous duty)
• Voltage type Powered by a 3.6-volt D cell lithium battery
• Operating temperature -40°C to +60°C Operating
• Frequency Range 900-928 MHz in North America 868-870 MHz in Europe
• Material: Body material -- Ultramid 8333G Hi-Polyamide 6 Seals - ROHS compliant silicon
• rubber, 60 durometer shore-A, compound # SIM40160
• Connection No connection, component provides a wireless signal
• Mounting options A variety of custom fit welds, clamps or brackets available. All three
• options provide secondary containment.
• Hazardous locations Exia IIB T4 Intrinsically Safe per IEC CAN/CSA E60079-11:02
