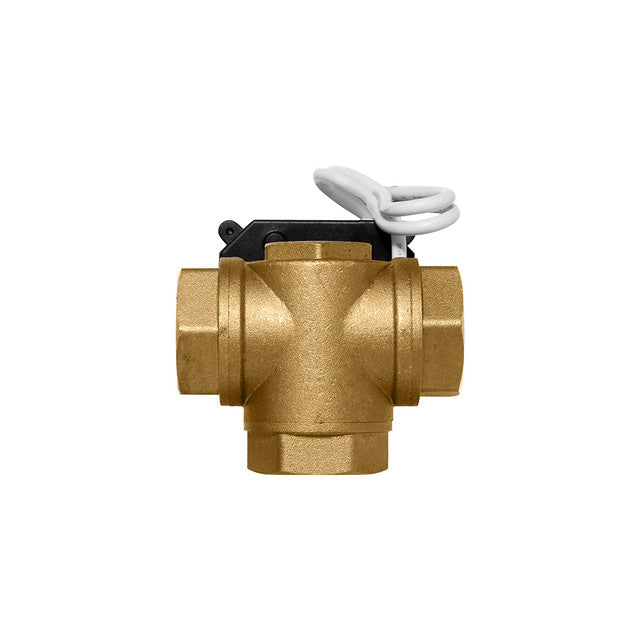

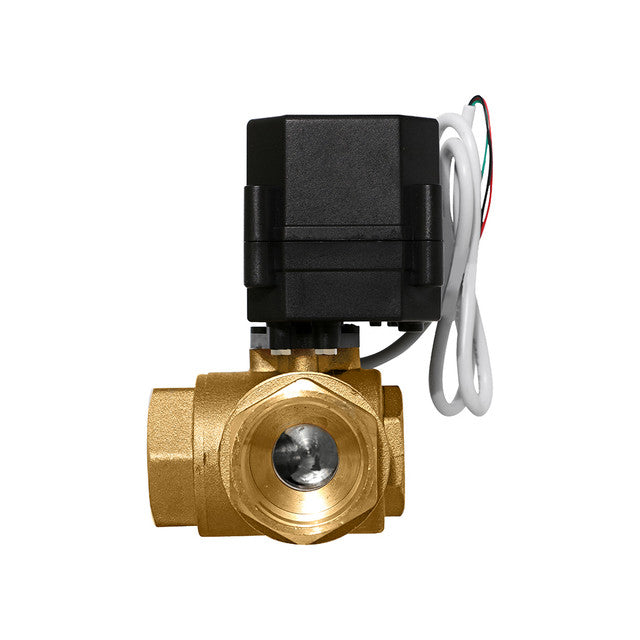

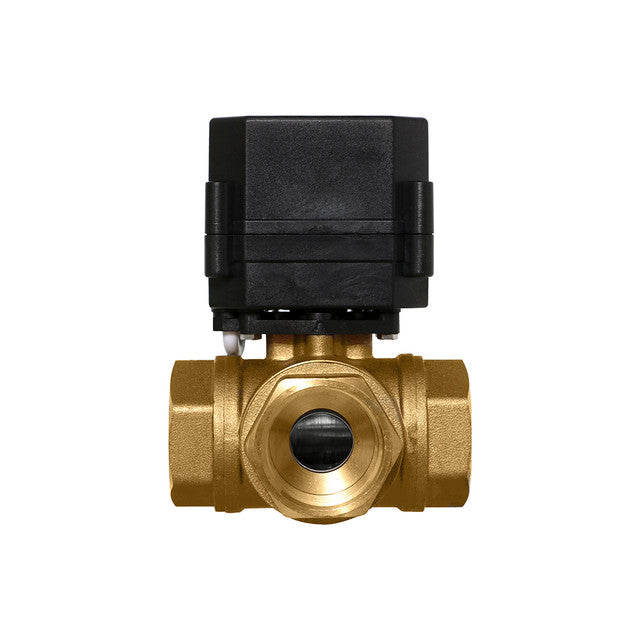

1" Brass 3 Way Electric Ball Valve - 3 Wire
1" Brass 3 Way Electric Ball Valve - 3 Wire
Regular price
$175.95 USD
Regular price
Sale price
$175.95 USD
Unit price
/
per
Couldn't load pickup availability
TECHNICAL DETAILS
SKU : BVB6TV-XR33
Port Size: 1" Female NPT
Wiring Type :XR33 - 3 Wire
Voltage Range : Select Above (auto detects voltage)
Body Material : Brass
Components : Stainless Steel
Seal Material : Viton®
Ball Seat : PTFE
Gears : Metal
Bore Type : 18mm Bore
Flow : Bi-Directional
Temp Range: 35 - 200° F / 2 to 90°C
Pressure Range : 0 - 185 PSI (No Minimum)
Max Torque: 2 Nm
Power: 500mA while actuated
Coil Connection: Lead Wires
Position Switch Time: 5 Seconds
Duty Cycle: 100%
*Suitable Media : Water – Air - Fuel - *Etc
Enclosure Rating: IP67 (NEMA 4 equivalent)
Weight: 2lb 2.3 oz
Height : 4.50"
Length: 3.35" port to port
Width: 3.35"
Life Expectancy: 70,000 Cycles
